Tumble Driers Machine

Tumble Driers Machine
Tumble Driers Machine
Send Inquiry
Product Code : RTD 60
Brand Name : Ramsons
Product Description

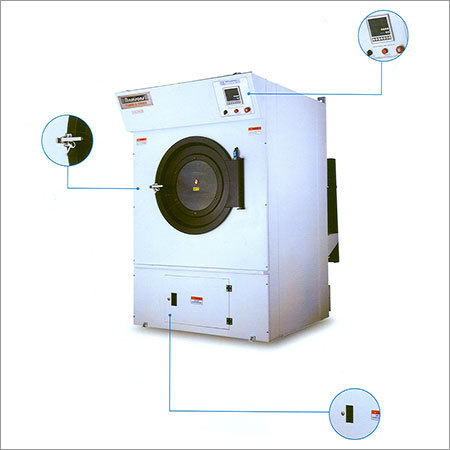

Tumble Driers Machine (RTD 60)

Designed for Ease

The special radiator/heat exchanger design and efficient blower system makes the drying time of this Ramsons dryer the best in its class. The stainless steel inner basket is programmable on time for forward and reverse rotations to prevent garments from intangling and a large glass door is provided for ease of loading and unloading linen/garments.

Programmed for safety

Programmable micro processor control system comes standard with this machine. The dryer could also be provided with RH indicator and controls and a cooling down damper (optional). Emergency stop buttons and a safety limit switch to pre installed to ensure safety of the operator. All dryers are provided with a self cleaning lint mesh prior to hot air exit.

Technical Specifications

Model

Capacity (kg)

Basket

Door Opening Diameter (mm)

Drive Motor (hp)

Exhaust Motor (hp)

Steam Inlet (inch)

Steam Outlet (inch)

Air Outlet (mm)

Heater (optional) (kw)

Dimensions (WxDxH) (mm)

Approx. Weight (kgs)

Volume (ltr)

Diameter (mm)

Depth (mm)

RTD 25

25

538

920

810

620

1

1

0.5

0.5

150x200

18

1000x1450x1820

510
