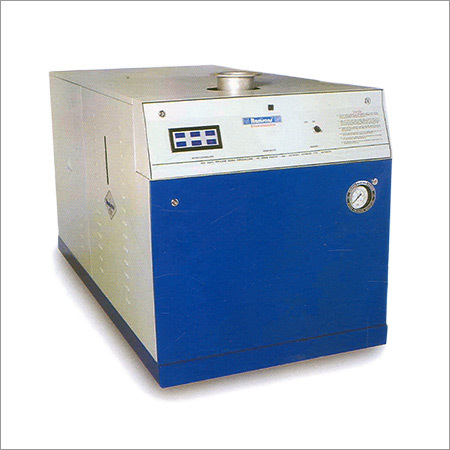

Multifule Ibr Steam Generators

Multifule Ibr Steam Generators
Multifule Ibr Steam Generators
Product Code : Ribr 50
Product Description

Multifule Ibr Steam Generators (Ribr 50)

Description

Manufactured to exacting IBR certified regulations using tested boiler steel plates and tubes. The manufacturing of these boilers are also certified by the IBR regulatory inspectorate at different stages of manufacture prior to issue of certificates for each boiler. The boiler serial numbers are stamped with the seals from the IBR inspectorate authorities. These boilers are available in 4 models of 50/100/200 kgs/hr and work on diesel and gas fuels using reputed Swedish burners to ensure high fuel economy. The boilers are enclosed in powder coated cabinets with water level indicators and electronic water level controllers. They come with IBR certified safety valves. Diesel Consumption data is provided for equipment/system design purpose.

Technical Specifications

Model

Steam Output (kg/hr)

Operating Pressure (Bar)

Water inlet (inch)

Steam Outlet (inch)

Diesel Consumption (Ltr/hr)

Water Pump (hp)

Dimensions (WxDxH) (mm)

Approx Weight (kgs)

ROB 707 - 50kg

50

5

1/2

1/2

3.5

1

770x1760x1150

590

ROB 708 - 100kg

100

5

3/4

1

5

1

1080x2290x1245

730

ROB 709 – 200kg

200

5

3/4

1

10

1

1100x2575x1250

900
